(S-320) compatible with vehicles from the following manufacturers: MERCEDES BENZ, VOLVO e IVECO.
Assemble with: S203 / S308 / S361 / S619 / S620 / S688 / SC10410 / SP3011 / SP3021

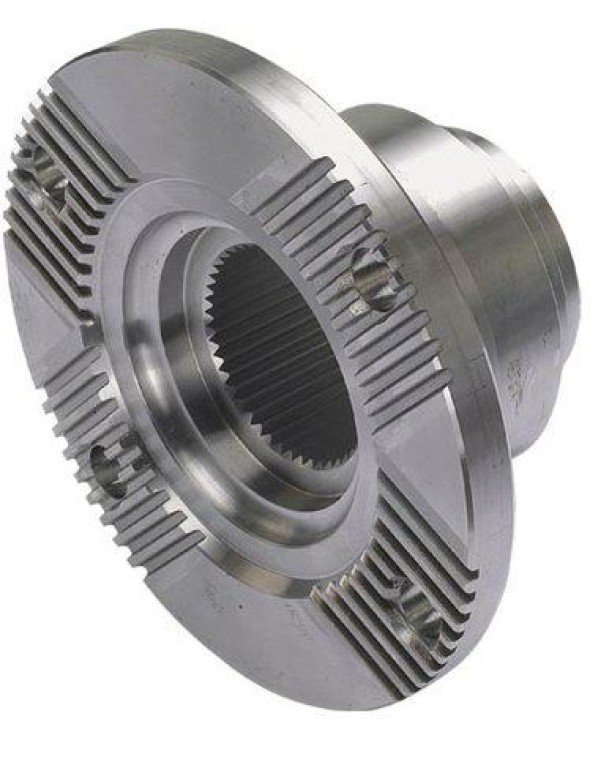

Description: COMPANION FLANGE 46 SPLINE (E) 4 HOLES
Applications:
- Central
Material: Steel
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF
Original code: 101031 | 801815 | FL1093| HFL614| NC04007 | SA18
Original code: 101031 | 801815 | FL1093| HFL614| NC04007 | SA18
Original code: 101031 | 801815 | FL1093| HFL614| NC04007 | SA18
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-320 | MERCEDES BENZ, VOLVO, IVECO | Central | 73,10 | 180,00 | 90,50 | 15,50 | 46-E | 57,50 | 60,20 |
