(S-315) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S338 / S396 / S397 / S702 / S708

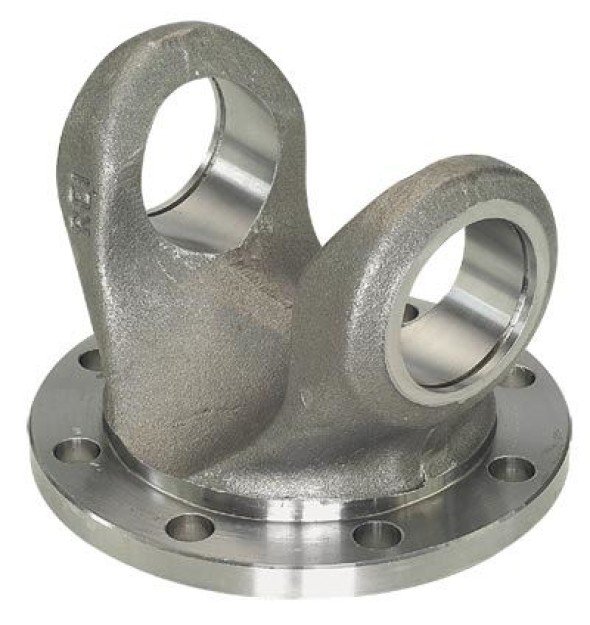

Description: FLANGE YOKE 8 HOLES
Applications:
- Cardan
Material: Steel
Original code: 41155 | SF07
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-315 | MERCEDES BENZ | Cardan | 165,00 | 82,00 | 133,00 | 512924X | 52,10 | 14,00 | 8 |
