(S-314) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S337

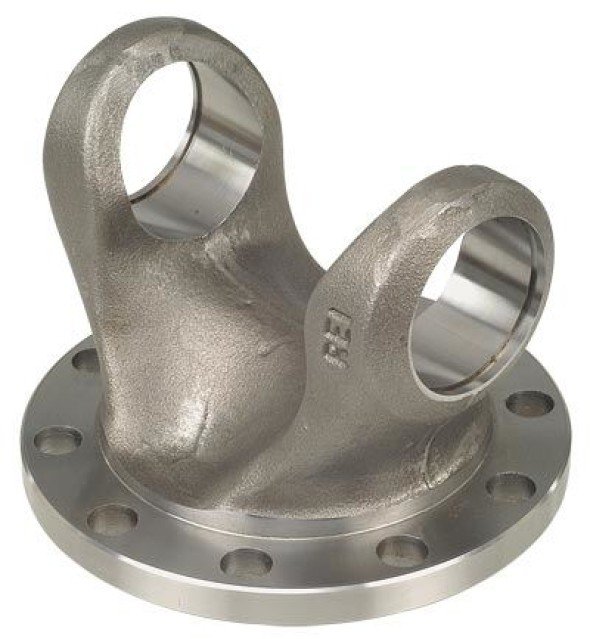

Description: FLANGE YOKE 10 HOLES
Applications:
- Cardan
Material: Steel
Extra: Nº ORIG. MB DA CRUZETA: 6204100031
Original code: 41093B | SF02 | 3754110011 | 3954110211
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-314 | MERCEDES BENZ | Cardan | 180,00 | 93,50 | 151,90 | C-019 / C-019B / 519932X | 57,00 | 16,00 | 10 |
