(S-310) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C015 / S398 / S422 / S423 / SP3013 / SP3018 / SP3020

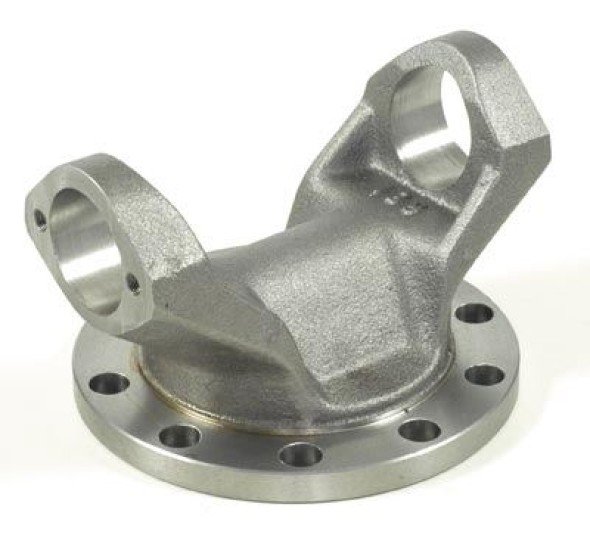

Description: FLANGE YOKE 10 HOLES
Applications:
- Cardan
Material: Nodular
Original code: 0004100830 | 41081 |SF34 | 652419
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-310 | MERCEDES BENZ | Cardan | 180,00 | 91,50 | 191,80 | C-015 / 5-281X | 49,20 | 16,00 | 10 |
