(S-308) compatible with vehicles from the following manufacturers: MERCEDES BENZ, VOLKSWAGEN, VOLVO, AMERICANA e IVECO.
Assemble with: C016 / S203 / S304 / S320 / S334 / S361 / S619 / S620 / S688 / SC10410 / SP3011 / SP3021

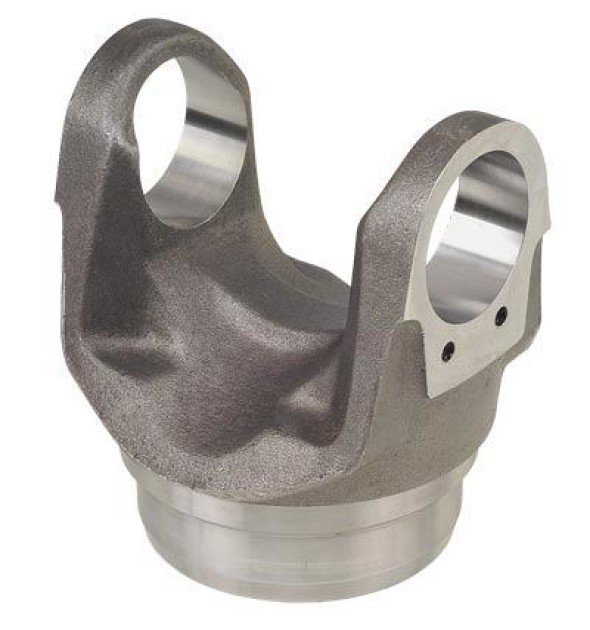

Description: WELD YOKE
Applications:
- Cardan
Material: Steel
Extra: Nº ORIG. VOLVO DA CRUZETA: 8127182 / IVECO: 50312088
Original code: 250M2817 | 41052 | 801324 | GR1043 | HGF620 | SG22 | 2502817 | 5010143
Original code: 250M2817 | 41052 | 801324 | GR1043 | HGF620 | SG22 | 2502817 | 5010143
Original code: 250M2817 | 41052 | 801324 | GR1043 | HGF620 | SG22 | 2502817 | 5010143
Original code: 250M2817 | 41052 | 801324 | GR1043 | HGF620 | SG22 | 2502817 | 5010143
Original code: 250M2817 | 41052 | 801324 | GR1043 | HGF620 | SG22 | 2502817 | 5010143
| Reference | Manufacturer(s) | Segment | A (mm) Base Solda Tubo Base Solda Tubo |
B (mm) Altura Encosto Solda ao Centro Olhal Altura Encosto Solda ao Centro Olhal |
C (mm) Comprom. Cruzetas s/ Travas Comprim. Cruzetas s/ Travas |
Cruzeta |
Cruzeta |
|---|---|---|---|---|---|---|---|
| S-308 | MERCEDES BENZ, VOLKSWAGEN, VOLVO, IVECO, AMERICANA | Cardan | 120,40 | 107,50 | 163,00 | C-016 / SPL250X | 60,00 |
