(S-302) compatible with vehicles from the following manufacturers: MERCEDES BENZ e LINHA VERDE.
Assemble with: C005 / S127 / S128 / S186 / S313 / S384 / SP113 / SP114 / SP3047

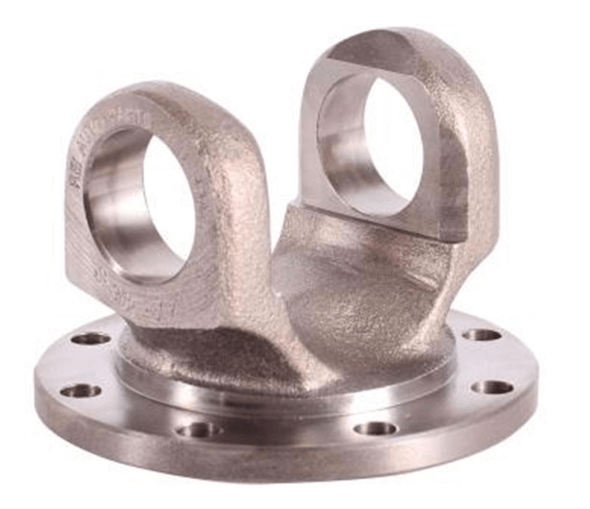

Description: FLANGE YOKE 8 HOLES
Applications:
- Cardan
Material: Nodular
Original code: 41090 | 801200 | AT1350 | HFL604 | NC04001 | SF11 | 3524110011 | 321139
Original code: 41090 | 801200 | AT1350 | HFL604 | NC04001 | SF11 | 3524110011 | 321139
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-302 | MERCEDES BENZ, LINHA VERDE | Cardan | 130,00 | 64,00 | 90,00 | C-005 / 5-12213X | 38,10 | 10,50 | 8 |
