(S-238) compatible with vehicles from the following manufacturers: VOLVO.
Assemble with: C018 / S513 / SK513

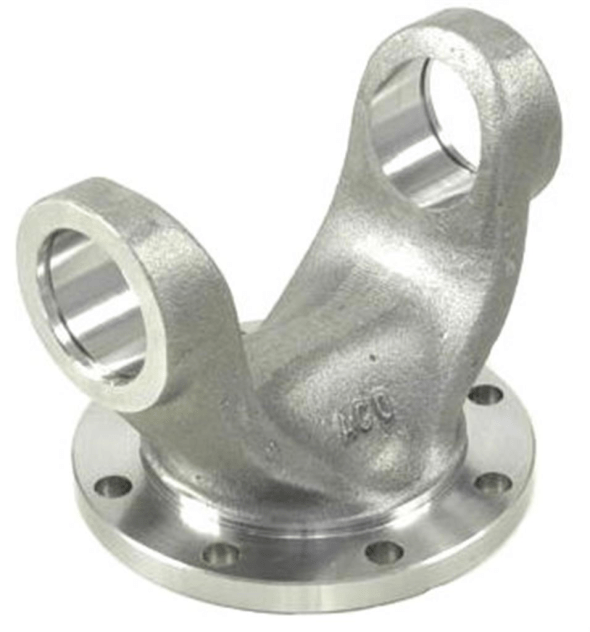

Description: FLANGE YOKE 8 HOLES
Applications:
- Cardan
Material: Steel
Original code: 6885567 | 101036 | 11994933 | SF03 | 02370
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-238 | VOLVO | Cardan | 174,50 | 92,00 | 160,90 | C-018 / 5-12062X | 48,00 | 9,70 | 8 |
