(S-236) compatible with vehicles from the following manufacturers: VOLKSWAGEN, VOLVO e IVECO.
Assemble with: S669 / S670 / S697 / S721 / SC10387 / SP3027 / SP-3086
Description: COMPANION FLANGE 26 SPLINE (E) 4 HOLES
Applications:
- Cardan
Material: Aço
Código original: 21081177
Material: Aço
Material: Aço

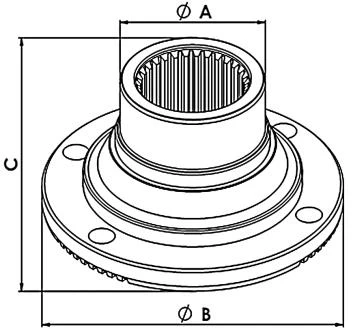

| Reference | Measure A (mm) | Measure B (mm) | Measure C (mm) | Stretch marks | Diameter A Smaller (mm) | Diameter B Bigger (mm) | Diâmetro do Furo (mm) |
|---|---|---|---|---|---|---|---|
| S-236 | 79,5 | 176 | 95,5 | 26-E | 67,1 | 70 | 15,5 |
