(S-232) compatible with vehicles from the following manufacturers: FORD e VOLKSWAGEN.
Assemble with: C014

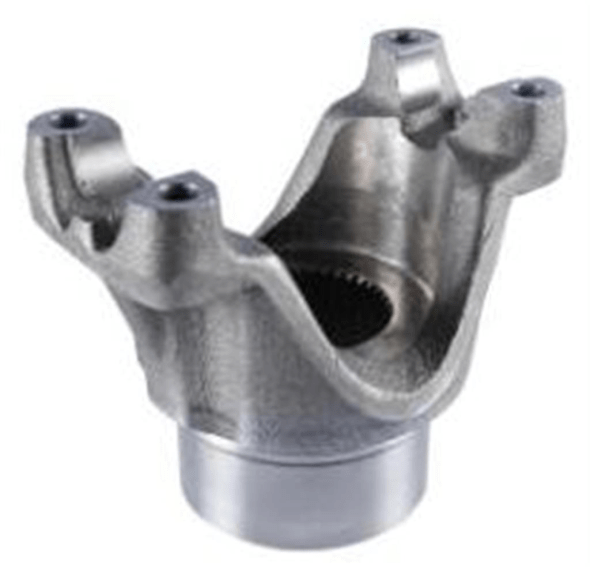

Description: END YOKE 39 SPLINE (E) THROGH HOLES
Applications:
- Diferencial
Material: Nodular
Extra: FURO PASSANTE / DIFERENCIAIS: MS145 / MS240 / MS245 / MS155 / RS145 / RS240 / RS-23240 / COMPRIMENTO DA PARTE ESTRIADA INTERNA: 59,00MM
Original code: T16525283 | 87HU4851ACA | 7142399 | 52250214 | 4461712 | 070386 | 35212 | A3260F318 | FL1076 | ST02
Original code: T16525283 | 87HU4851ACA | 7142399 | 52250214 | 4461712 | 070386 | 35212 | A3260F318 | FL1076 | ST02
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-232 | FORD, VOLKSWAGEN | Diferencial | 121,20 | 76,20 | C-014 / 5-275X / SPL70-1X | 126,10 | 34,90 | 39-E | 48,80 | 51,40 |
