S-230 Terminal

Packaged with 1 piece

Weight: 2,25 (kg)

(S-230) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN e LINHA AMARELA.

Assemble with: C-014

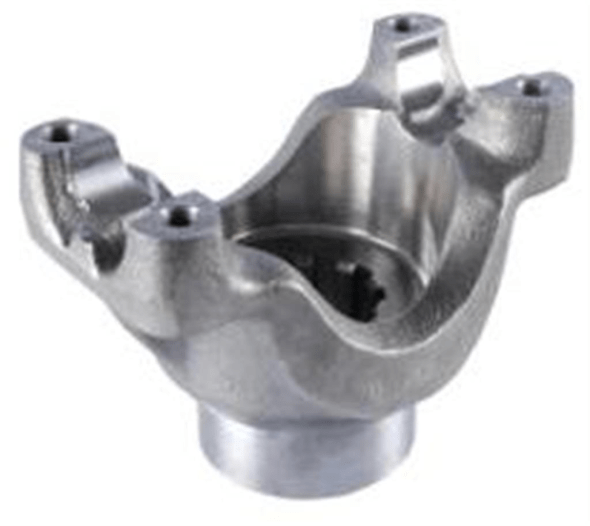

Description: END YOKE GEARBOX FS4205 10 SPLINE (R) THREAD 3/8"X24 F.P.P

Applications:
- Cambio

Material: Nodular

Extra: CÂMBIOS: FS4005A / FS4005B / FS4205A

Manufacturers

FORD

VOLKSWAGEN

LINHA AMARELA

Access catalog

FORD

Código original: 2RH311963 / 2S0409271 / 2TD311963 / 93292558 / BS5T7989AA
Material: Nodular

Original code: 2RH311963 | 2S0409271 | 2TD311963 |93292558 |BS5T7989AA | 4461511 | 086903 | 301055 | FL1075 | NC14003 | ST17

FORD:

Cargo 1117 Cargo 1215 Cargo 1317 Cargo 1415 Cargo 1416 Cargo 1516 Cargo 1517 Cargo 1615 F12000 F14000 F22000

VOLKSWAGEN

Código original: 2RH311963 / 2S0409271
Material: Nodular

Original code: 2RH311963 | 2S0409271 | 2TD311963 |93292558 |BS5T7989AA | 4461511 | 086903 | 301055 | FL1075 | NC14003 | ST17

VW:

12140 12170 12180 13150 13170 14150 14170 15170 15180 15190 13180 Constellation 13180 Worker 13190 14180 15170 WORKER

LINHA AMARELA

Material: Nodular

Original code: 2RH311963 | 2S0409271 | 2TD311963 |93292558 |BS5T7989AA | 4461511 | 086903 | 301055 | FL1075 | NC14003 | ST17

Pulverizadores:

Colcha Pulverizadores Montana Pulverizdores Robusta Pulverizadores El Detalhe AO-101

Terminal do eixo cardan

Reference	Manufacturer(s)	Segment	A ( mm ) Altura total	B ( mm ) Ø Base do retentor	Cruzeta	Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas	Ø Cruzeta	Rosca	Quantidade Estrias	Ø A ( mm ) Menor	Ø B ( mm ) Maior
S-230	FORD, VOLKSWAGEN, LINHA AMARELA	Cambio	105,50	63,55	C-014 / 5-275X / 5-275XS / SPL70-1X	126,10	34,90	3/8	10-R	38,60	44,45
