(S-227) compatible with vehicles from the following manufacturers: MERCEDES BENZ e FORD.
Assemble with: C014 / S225 / S226 / S233 / SC10340 / SC10358 / SP3038 / SP3040 / SP3043

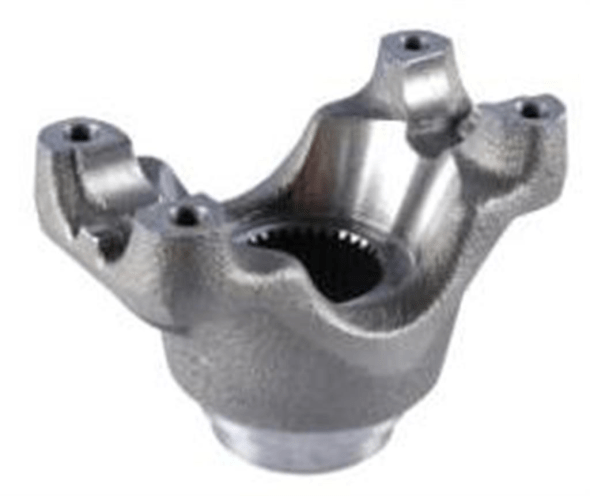

Description: END YOKE 34 SPLINE (E) THREAD M10X1,0MM
Applications:
- Central
Material: Nodular
Original code: 0004101230 | 048871 | 41130 | ST66
Original code: 0004101230 | 048871 | 41130 | ST66
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-227 | MERCEDES BENZ, FORD | Central | 101,00 | 55,70 | C-014 / 5-275X / SPL70-1X | 126,10 | 34,90 | M10X1,00 | 34-E | 42,20 | 45,14 |
