(S-226) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C014 / S225 / S227 / S233 / SC10340 / SC10358 / SP3038 / SP3040 / SP3043

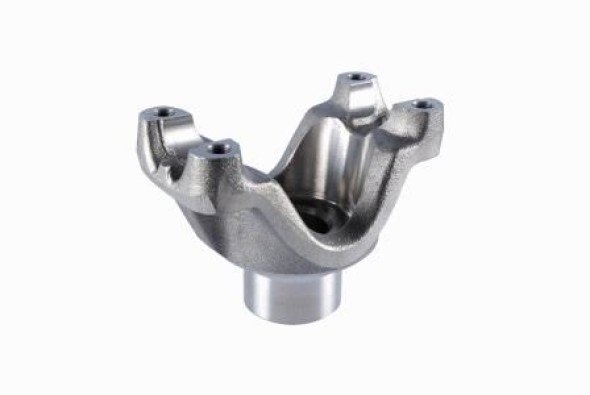

Description: END YOKE 14 SPLINE (R) THREAD M10X1,0MM
Applications:
- Diferencial
Material: Nodular
Extra: DIFERENCIAL BR2/HL2
Original code: 6883500144 | 048781C | 41336 | ST83
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-226 | MERCEDES BENZ | Diferencial | 106,00 | 51,90 | C-014 / 5-275X / SPL70-1X | 126,10 | 34,90 | M10X1,00 | 14-E | 36,10 | 40,65 |
