(S-225) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C014 / S226 / S227 / S233 / SC10358 / SP3038 / SP3040 / SP3043

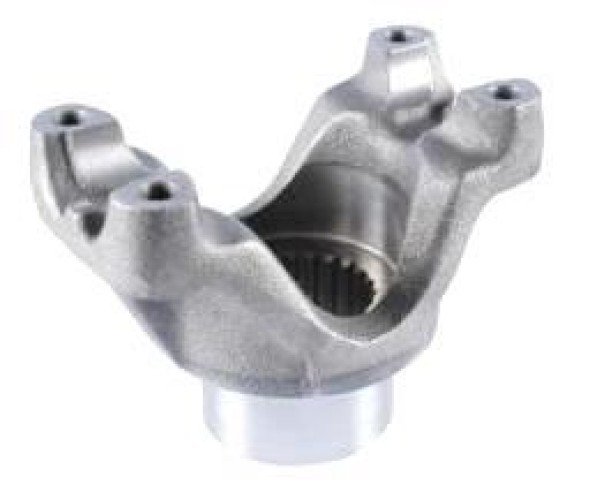

Description: END YOKE GEARBOX 24 SPLINE (E) THREAD M10X1,0MM
Applications:
- Cambio
Material: Nodular
Original code: 6882627745 | 048331 | 26117 | ST84
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-225 | MERCEDES BENZ | Cambio | 107,00 | 62,00 | C-014 / 5-275X / SPL70-1X | 126,10 | 34,90 | M10X1,00 | 24-E | 46,35 | 50,00 |
