(S-214) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S213 / S215 / S440 / S452 / S453 / S454 / SC10371 / SC10400 / SC10411 / SK004

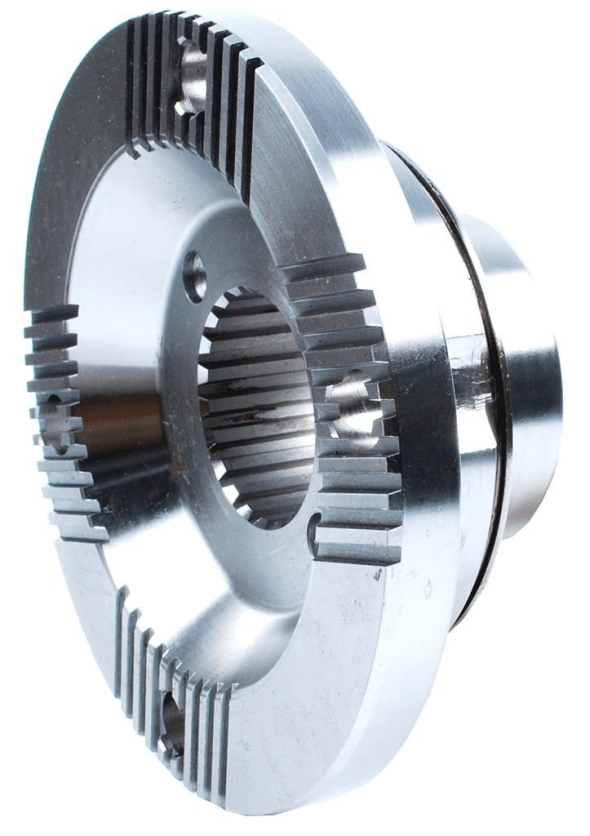

Description: COMPANION FLANGE 22 SPLINE (E) 4 HOLES P-600
Applications:
- Diferencial
Material: Steel
Extra: SAIDA DO 1º DIFERENCIAL
Original code: 41594
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-214 | SCANIA | Diferencial | 80,00 | 180,00 | 80,50 | 15,50 | 22-E | 51,40 | 54,85 |
