(S-212) compatible with vehicles from the following manufacturers: LINHA VERDE.
Assemble with: C003

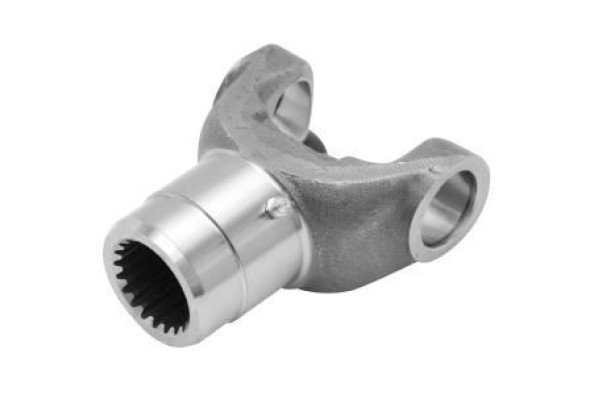

Description: SLIP YOKE 20 SPLINE (E)
Applications:
- Cardan
Material: Steel
Original code: RE58381 | 41623
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-212 | LINHA VERDE | Cardan | 115,50 | 106,20 | C-003 / 5-263X | 34,90 | 20-E | 38,60 | 42,40 |
