(S-201) compatible with vehicles from the following manufacturers: VOLVO.
Assemble with: C015 / S202 / S413 / S422 / S459 / SC10358 / SP3018 / SP3020 / SP3051

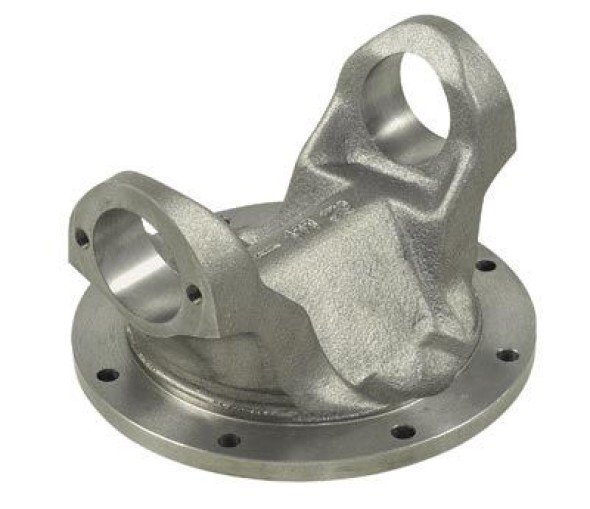

Description: FLANGE YOKE 8 HOLES 1ª SÉRIE
Applications:
- Cardan
Material: Steel
Original code: 6885515 | 41257 | 02364
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-201 | VOLVO | Cardan | 203,50 | 87,00 | 191,80 | C-015 / 5281X | 49,20 | 9,50 | 8 |
