(S-193) compatible with vehicles from the following manufacturers: LINHA VERDE.
Assemble with: C027 / S194 / S195

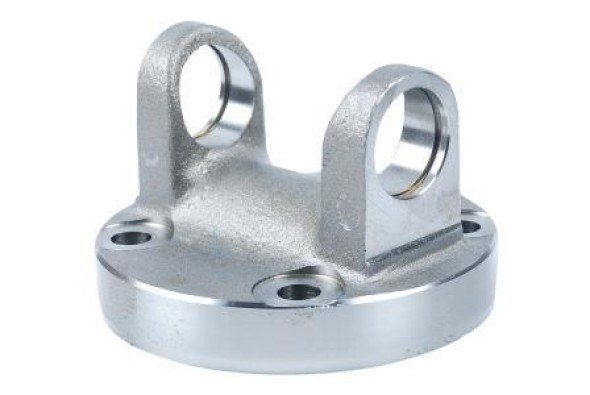

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Steel
Extra: ENCAIXE FEMEA
Original code: L114857 | 41546
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-193 | LINHA VERDE | Cardan | 116,00 | 54,00 | 85,50 | AL160516 | 30,00 | 12,00 | 4 |
