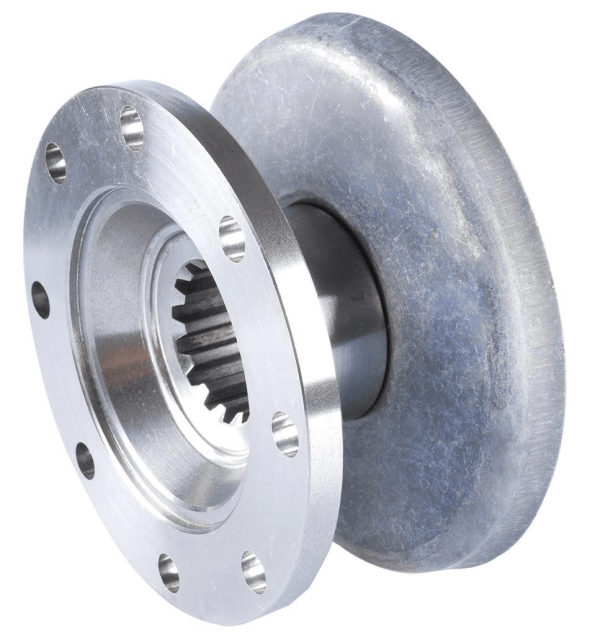

(S-186) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S127 / S128 / S302 / S313 / S384 / SP113 / SP114 / SP3047
Description: COMPANION FLANGE 14 SPLINE (R) 8 HOLES
Applications:
- Central
Material: Nodular
Extra: Substitui: S-172
Original code: 3524100130 | 01246C | S172 | 41079 | 801801 | FL1355 | HFL601 | KPFLR2355 | NC04003 | SA29
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-186 | MERCEDES BENZ | Central | 52,50 | 130,00 | 63,00 | 10,50 | 8 | 14-R | 36,10 | 40,65 |
