(S-184) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: C014 / SC10398

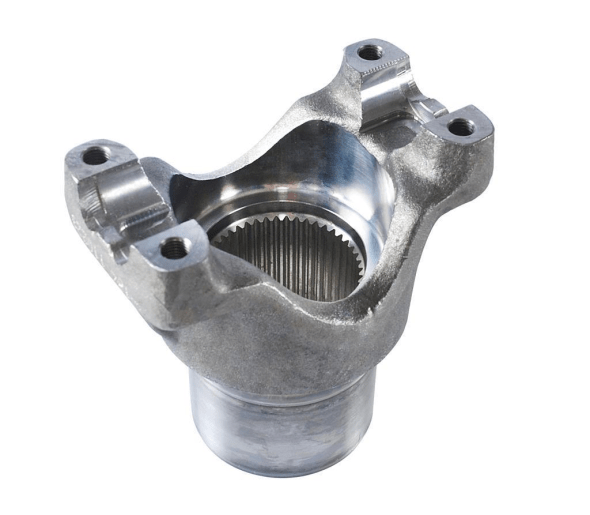

Description: END YOKE 46 SPLINE (E) THREAD M10X1,25MM
Applications:
- Diferencial
Material: Steel
Original code: 8E4950 | 41616
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-184 | LINHA AMARELA | Diferencial | 140,00 | 76,20 | C-014 / 5-275X / SPL70-1X | 126,10 | 34,90 | M10X1,25 | 46-E | 57,50 | 60,20 |
