(S-161) compatible with vehicles from the following manufacturers: VOLKSWAGEN, VOLVO, LINHA AMARELA e MAN.
Assemble with: C019 / S512 / S162
Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Steel
Original code: 2V2521145A | 41516
Original code: 41516
Original code: 41516

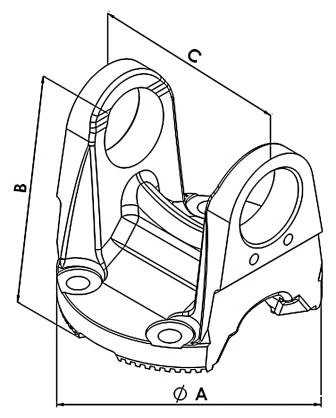

| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
|---|---|---|---|---|---|---|---|---|
| S-161 | VOLKSWAGEN, VOLVO, LINHA AMARELA, LINHA AMARELA, MAN | Cardan | 180,00 | 94,00 | 151,90 | C-019B / C-019 / 5-12932X | 57,00 | 15,50 |
