(S-157) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: S150 / S151 / S1006

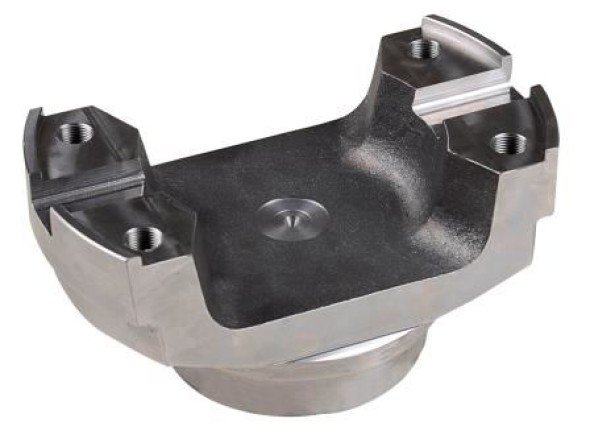

Description: TUBE YOKE THREAD 3/4"X16 F.P.P
Applications:
- Cardan
Material: Steel
Extra: SÉRIE 15C
Original code: 15C26394 | 276185

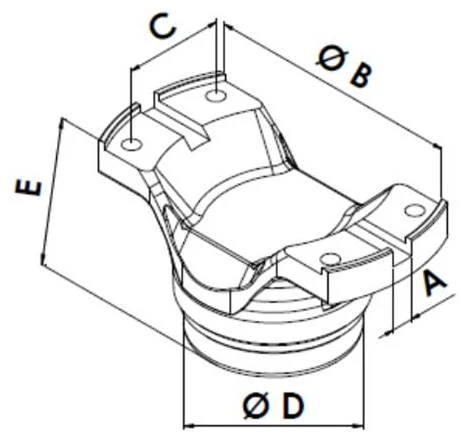

| Reference | Manufacturer(s) | Segment | A ( mm ) Rasgo da chaveta |
Ø B ( mm ) Comprimento encosto cruzeta |
C ( mm ) Distancia menor entre furos |
Ø D ( mm ) Ø Base solda |
E ( mm ) Altura total |
Rosca |
Cruzeta |
|---|---|---|---|---|---|---|---|---|---|
| S-157 | LINHA AMARELA | Cardan | 31,73 | 259,98 | 100,00 | 146,20 | 107,70 | 3/4 | 515211X |
