(S-155) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: C004 / S309

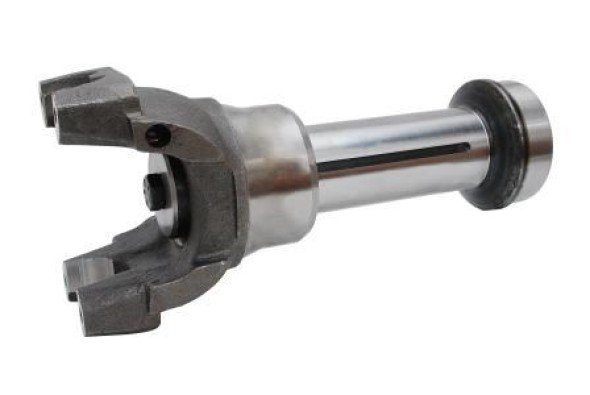

Description: MIDSHIP ASSY. 39 SPLINE (E) THREAD M14X1,50MM - THREAD YOKE M10X1,25MM
Applications:
- Cardan
Material: Steel
Extra: ESTRIAS PADRÃO REI AUTO PARTS
Original code: 3670567 | 41518
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento face terminal ate encosto tubo |
Ø B ( mm ) Ø Rolamento |
C ( mm ) Ø Base de encaixe tubo |
Rosca |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
D ( mm ) Comprimento da Cruzeta |
|---|---|---|---|---|---|---|---|---|---|---|
| S-155 | LINHA AMARELA | Cardan | 322,50 | 61,93 | 95,30 | Ponteira M14X1,50 - Terminal M10X1,25 | C-004 / 5-438X | 47,60 | 69-E | 134,90 |
