(S-154) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: S152 / S153

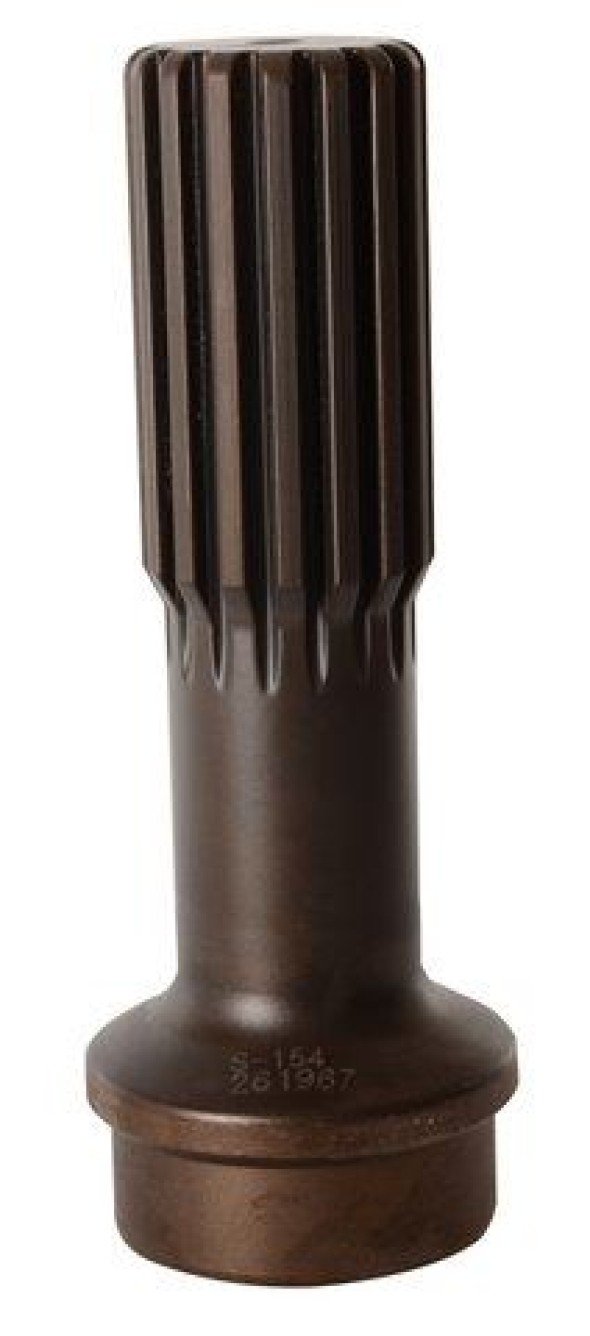

Description: TUBE SHAFT 16 SPLINE (R)
Applications:
- Cardan
Material: Steel
Extra: SÉRIE 9C
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento da face ate encosto tubo |
B ( mm ) Ø Base da ponteira |
C ( mm ) Ø Estrias |
D ( mm ) Comprimento das estrias |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| S-154 | LINHA AMARELA | Cardan | 277,50 | 101,70 | 76,10 | 132,00 | 16-R | 60,25 | 76,10 |
