(S-153) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: S152 / S154

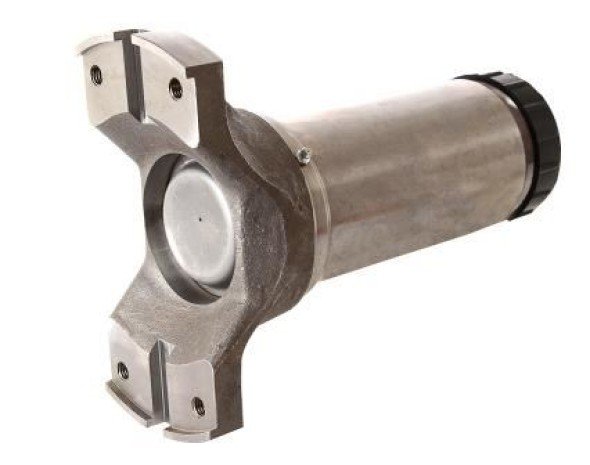

Description: SLIP YOKE 16 SPLINE (R) THREAD M12X1,75MM
Applications:
- Cardan
Material: Steel
Extra: SÉRIE 9C

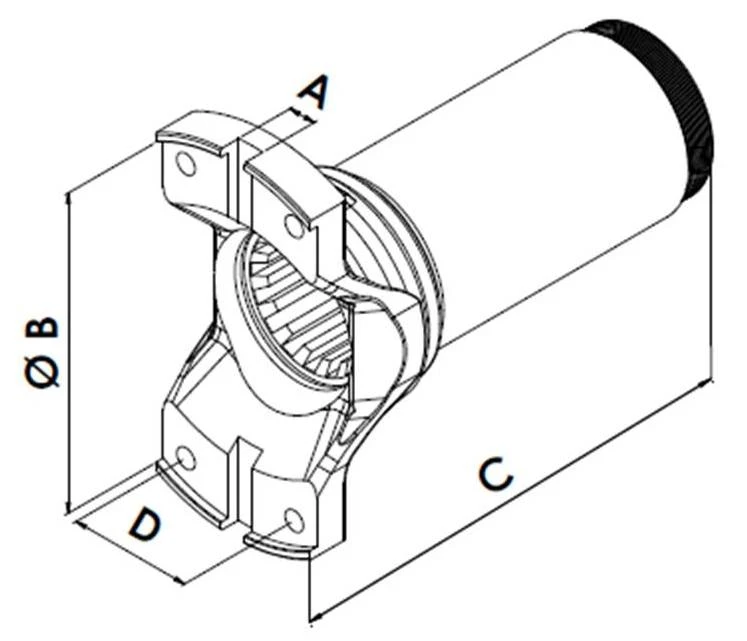

| Reference | Manufacturer(s) | Segment | A ( mm ) Rasgo da chaveta |
Ø B ( mm ) Comprimento encosto cruzeta |
C (mm) Comprimento total |
D ( mm ) Distancia menor entre furos |
Rosca |
Quant. Estrias |
Cruzeta |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-153 | LINHA AMARELA | Cardan | 15,87 | 209,50 | 274,00 | 71,50 | M12X1,75 | 16-E | 59111X / 59211X | 65,90 | 76,40 |
