(S-150) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: S151 / S157

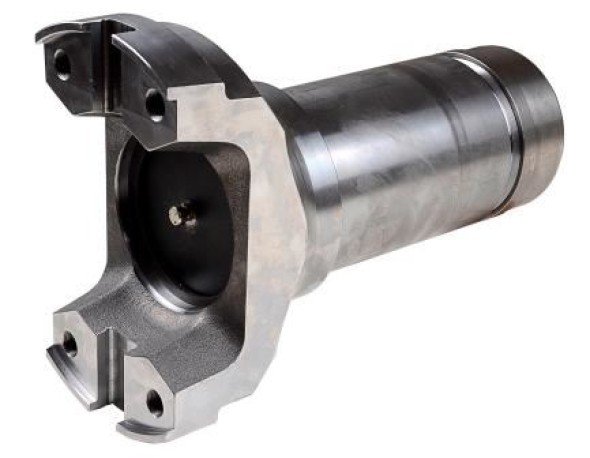

Description: SLIP YOKE 38 SPLINE (E) THREADS 3/4"X16 F.P.P
Applications:
- Cardan
Material: Steel
Extra: SÉRIE 15C / ESTRIAS PADRÃO REI AUTO PARTS
Original code: 373394
| Reference | Manufacturer(s) | Segment | A ( mm ) Rasgo da chaveta |
Ø B ( mm ) Comprimento encosto cruzeta |
C (mm) Comprimento total |
D ( mm ) Distancia menor entre furos |
Rosca |
Quant. Estrias |
Cruzeta |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-150 | LINHA AMARELA | Cardan | 31,75 | 259,98 | 355,50 | 100,00 | 3/4"X16F.P.P | 38-E | 515111X / 515211X | 93,00 | 97,50 |
