(S-136) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN, LINHA AMARELA, CATERPILAR e IVECO.
Assemble with: C013

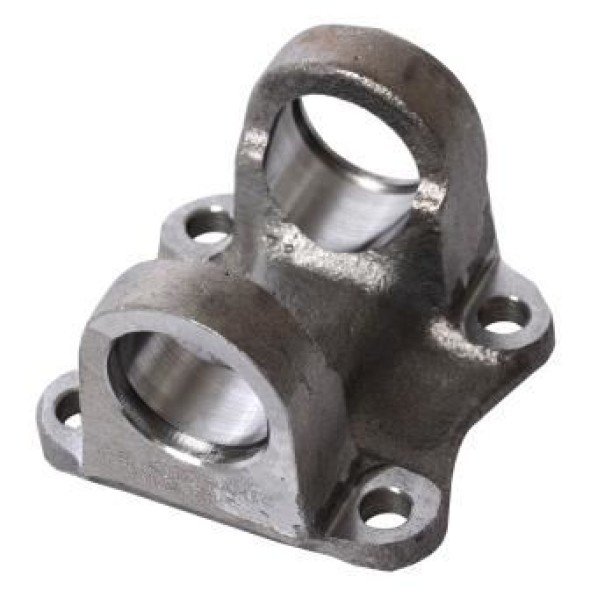

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Nodular
Extra: Ø DO PILOTO (ENCAIXE) 95,30MM
Original code: 301132 | AT1951 | SF38 | 361885 | 7322435 | B7T4866A | 32559
Original code: 301132 | AT1951 | SF38 | 361885 | 7322435 | B7T4866A | 32559
Original code: 301132 | AT1951 | SF38 | 361885 | 7322435 | B7T4866A | 32559
Original code: 301132 | AT1951 | SF38 | 361885 | 7322435 | B7T4866A | 32559
Original code: 301132 | AT1951 | SF38 | 361885 | 7322435 | B7T4866A | 32559
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
C ( mm ) Ø Furo |
Ø Piloto Encaixe |
Cruzeta |
Ø Cruzeta |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-136 | FORD, LINHA AMARELA, CATERPILAR, IVECO, VOLKSWAGEN | Cardan | 40,00 | 106,00 | 13,00 | 95,30 | C-013 / 5160X | 30,20 | 4 |
