(S-135) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN, CHEVROLET GMC, LINHA AMARELA e AMERICANA.
Assemble with: C003

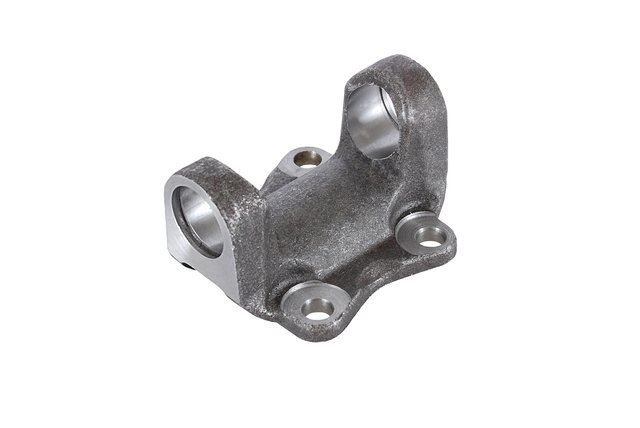

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Nodular
Extra: Ø DO PILOTO (ENCAIXE) 95,30MM
Original code: 801209 | 148N2479 | 301068 | AT1072 | RFL610 | SF39 |9298975 | CITT4866A | TL7525285 | 32479
Original code: 801209 | 148N2479 | 301068 | AT1072 | RFL610 | SF39 |9298975 | CITT4866A | TL7525285 | 32479
Original code: 801209 | 148N2479 | 301068 | AT1072 | RFL610 | SF39 |9298975 | CITT4866A | TL7525285 | 32479
Original code: 801209 | 148N2479 | 301068 | AT1072 | RFL610 | SF39 |9298975 | CITT4866A | TL7525285 | 32479
Original code: 801209 | 148N2479 | 301068 | AT1072 | RFL610 | SF39 |9298975 | CITT4866A | TL7525285 | 32479
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
C ( mm ) Ø Furo |
Ø Piloto Encaixe |
Cruzeta |
Ø Cruzeta |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-135 | VOLKSWAGEN, CHEVROLET GMC, FORD, LINHA AMARELA, AMERICANA | Cardan | 52,30 | 106,00 | 13,00 | 95,30 | C-003 / 5263X | 34,90 | 4 |
