(S-134) compatible with vehicles from the following manufacturers: IVECO.
Assemble with: C010

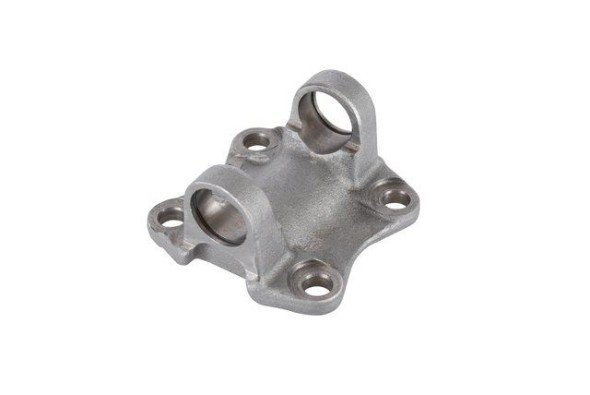

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Nodular
Extra: Ø DO PILOTO (ENCAIXE) 69,90MM
Original code: 301036 | SF51 | 221459

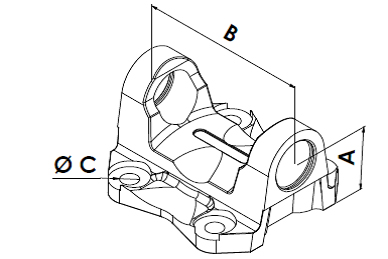

| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
C ( mm ) Ø Furo |
Ø Piloto Encaixe |
Cruzeta |
Ø Cruzeta |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-134 | IVECO | Cardan | 36,50 | 81,80 | 12,00 | 69,90 | C-010 / 5153X | 27,00 | 4 |
