(S-132) compatible with vehicles from the following manufacturers: VOLKSWAGEN e IVECO.
Assemble with: C013

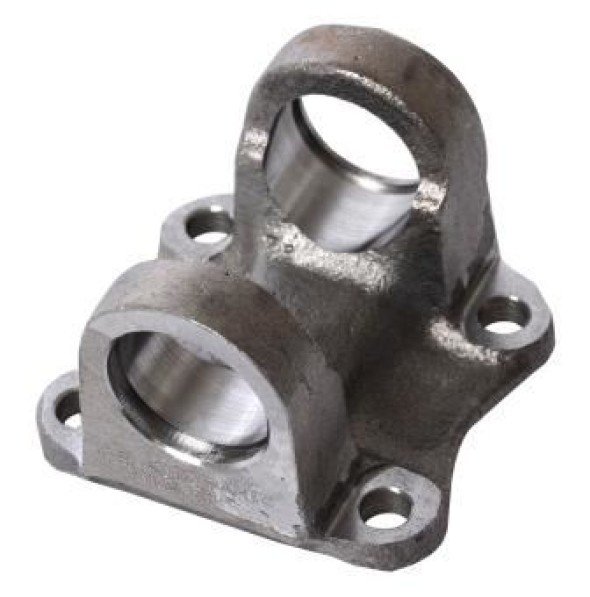

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Nodular
Extra: Ø DO PILOTO (ENCAIXE) 69,90MM
Original code: 301037 | NC04001| SF52 | 321329
Original code: 301037 | NC04001| SF52 | 321329
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
C ( mm ) Ø Furo |
Ø Piloto Encaixe |
Cruzeta |
Ø Cruzeta |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-132 | IVECO, VOLKSWAGEN | Cardan | 44,40 | 106,00 | 12,00 | 69,90 | C-013 / 5160X | 30,20 | 4 |
