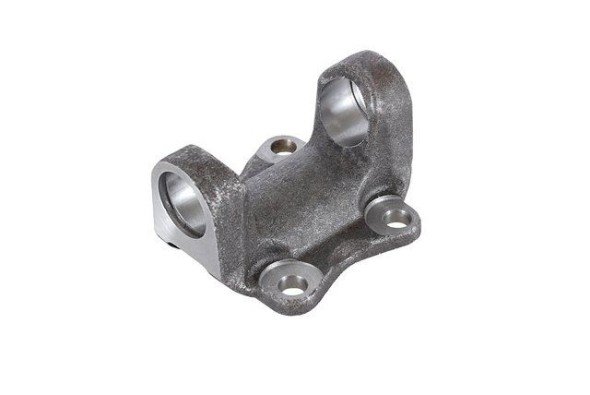

S-131 Flange de articulação (sapata)

Packaged with 1 piece

Weight: 1,75 (kg)

(S-131) compatible with vehicles from the following manufacturers: CHEVROLET GMC, LINHA AMARELA e AMERICANA.

Assemble with: C014

Description: FLANGE YOKE 4 HOLES

Applications:
- Cardan

Material: Nodular

Extra: Ø DO PILOTO (ENCAIXE) 95,25MM

Manufacturers

CHEVROLET GMC

LINHA AMARELA

AMERICANA

Access catalog

CHEVROLET GMC

Material: Nodular

Original code: 155N2669 | 301131 | 801208 | AT1071 | HFL611 | RFL611 | SF40 | 4128412 | 503625 | 52270243 | 946222054 | 42669

Chevrolet:

A/C/D

GMC:

Kodiak

LINHA AMARELA

Material: Nodular

Original code: 155N2669 | 301131 | 801208 | AT1071 | HFL611 | RFL611 | SF40 | 4128412 | 503625 | 52270243 | 946222054 | 42669

Industrial:

Industrial

Dina:

Dina 631K3

AMERICANA

Material: Nodular

Original code: 155N2669 | 301131 | 801208 | AT1071 | HFL611 | RFL611 | SF40 | 4128412 | 503625 | 52270243 | 946222054 | 42669

AMERICANA:

Navistar 641 Navistar 6611G MB F1521 MB S1834 MB KL1317 MB F1118 MB F1517

Outros:

F350

Flange de articulação (sapata)

Reference	Manufacturer(s)	Segment	A ( mm ) Altura base ao centro olhal	B ( mm ) Comprimento cruzeta sem travas	C ( mm ) Ø Furo	Ø Piloto Encaixe	Cruzeta	Ø Cruzeta	Quant. Furos
S-131	CHEVROLET GMC, LINHA AMARELA, AMERICANA	Cardan	52,40	126,10	13,00	95,25	C-014 / 5275X	34,90	4
