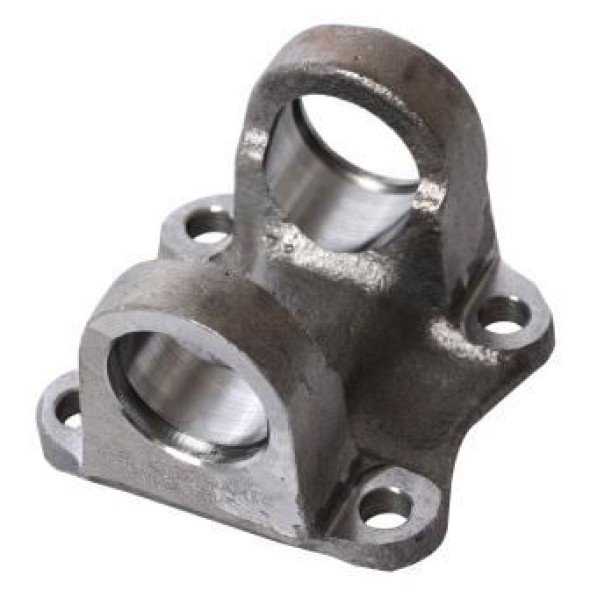

S-130 Flange de articulação (sapata)

Packaged with 1 piece

Weight: 1,15 (kg)

(S-130) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN, CHEVROLET GMC e AMERICANA.

Assemble with: C013

Description: FLANGE YOKE 4 HOLES

Applications:
- Cardan

Material: Nodular

Extra: Ø DO PILOTO (ENCAIXE) 70MM

Manufacturers

FORD

VOLKSWAGEN

CHEVROLET GMC

AMERICANA

Access catalog

VOLKSWAGEN

Código original: 2994235
Material: Nodular

Original code: 801205 | 141N2159 | 301066 | AT1077 | HFL609 | NC04010 | SF16 | 2994235 | 3707776 | 32159

VW:

680 790

CHEVROLET GMC

Código original: 3707776
Material: Nodular

Original code: 801205 | 141N2159 | 301066 | AT1077 | HFL609 | NC04010 | SF16 | 2994235 | 3707776 | 32159

Chevrolet:

A/C/D - 64 A 75

AMERICANA

Material: Nodular

Original code: 801205 | 141N2159 | 301066 | AT1077 | HFL609 | NC04010 | SF16 | 2994235 | 3707776 | 32159

AMERICANA:

Crysler D350 F300

GM:

GM C6D042 GM CS61403

Outros:

F350

FORD

Material: Nodular

Original code: 801205 | 141N2159 | 301066 | AT1077 | HFL609 | NC04010 | SF16 | 2994235 | 3707776 | 32159

FORD:

F350

Flange de articulação (sapata)

Reference	Manufacturer(s)	Segment	A ( mm ) Altura base ao centro olhal	B ( mm ) Comprimento cruzeta sem travas	C ( mm ) Ø Furo	Ø Piloto Encaixe	Cruzeta	Ø Cruzeta	Quant. Furos
S-130	VOLKSWAGEN, CHEVROLET GMC, AMERICANA, FORD	Cardan	44,30	106,00	11,20	70,00	C-013 / 5160X	30,20	4
