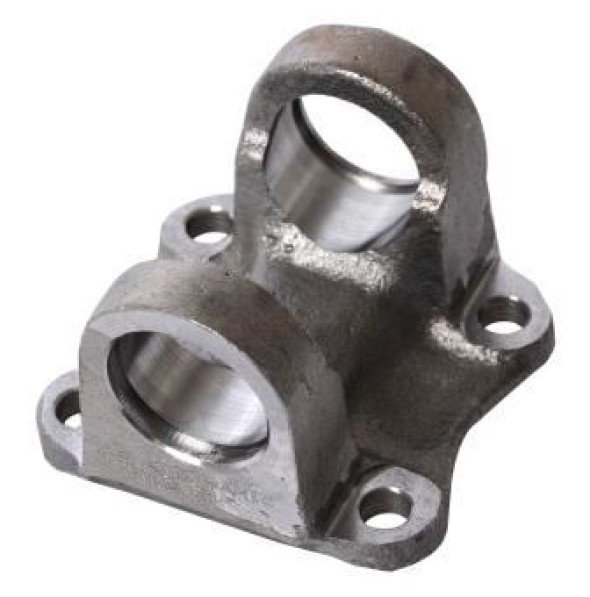

S-129 Flange de articulação (sapata)

Packaged with 1 piece

Weight: 0,55 (kg)

(S-129) compatible with vehicles from the following manufacturers: VOLVO, CHEVROLET GMC e LINHA VERDE.

Assemble with: C001 / S109 / S110 / S119 / S141

Description: FLANGE YOKE 4 HOLES

Applications:
- Cardan

Material: Nodular

Extra: Ø DO PILOTO (ENCAIXE) 57MM

Manufacturers

VOLVO

CHEVROLET GMC

LINHA VERDE

Access catalog

VOLVO

Código original: 6885181 / 3319737
Material: Nodular

Original code: 801213 | 101040 | AT1210 | NC04012 |RFL615 | SF35 | 3319737 | 6885181 | 83704900 | 9299121 | 22879

Ônibus:

Ônibus B58 Ônibus B10M

CHEVROLET GMC

Material: Nodular

Original code: 801213 | 101040 | AT1210 | NC04012 |RFL615 | SF35 | 3319737 | 6885181 | 83704900 | 9299121 | 22879

Others:

Opala

LINHA VERDE

Material: Nodular

Original code: 801213 | 101040 | AT1210 | NC04012 |RFL615 | SF35 | 3319737 | 6885181 | 83704900 | 9299121 | 22879

VALTRA:

BH180 BH140 BH145

Flange de articulação (sapata)

Reference	Manufacturer(s)	Segment	A ( mm ) Altura base ao centro olhal	B ( mm ) Comprimento cruzeta sem travas	C ( mm ) Ø Furo	Ø Piloto Encaixe	Cruzeta	Ø Cruzeta	Quant. Furos
S-129	VOLVO, CHEVROLET GMC, LINHA VERDE	Cardan	31,80	69,00	8	57,00	C-001 / 5310X	27,00	4
