(S-128) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S127 / S186 / S302 / S313 / S384 / SP113 / SP114 / SP3047

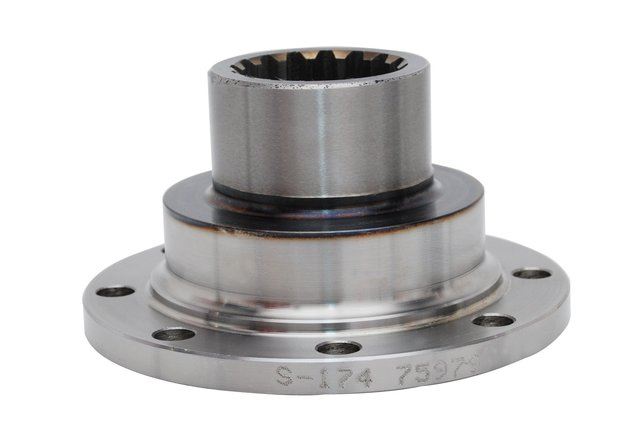

Description: COMPANION FLANGE 16 SPLINE (E) 8 HOLES
Applications:
- Cambio
Material: Nodular
Extra: Subsititui: S-174
Original code: 3522620045 | 01336 | S174 | 801802 | 26098 | FL1359 | KPFLR2359
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-128 | MERCEDES BENZ | Cambio | 58,00 | 130,00 | 68,00 | 10,50 | 8 | 16-E | 41,00 | 46,30 |
