(S-127) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S128 / S186 / S302 / S313 / S384 / SP113 / SP114 / SP3047

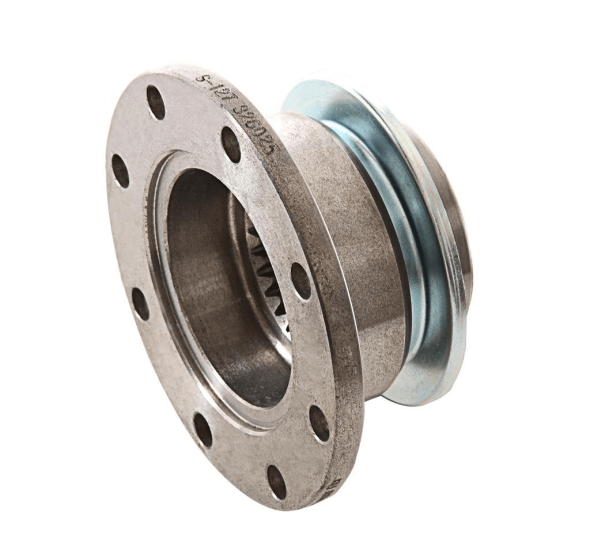

Description: COMPANION FLANGE 26 SPLINE (E) 8 HOLES
Applications:
- Diferencial
Material: Nodular
Extra: Subsititui: S-173
Original code: 3603500045 | 01294C | S173 | 35193 | 801800 | FL1363 | HFL607 | KPFLR23363 | NC04002 | SA03

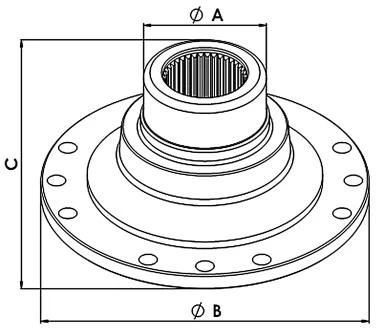

| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-127 | MERCEDES BENZ | Diferencial | 68,00 | 130,00 | 65,00 | 10,50 | 8 | 26-E | 50,10 | 55,28 |
