(S-118) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: S117

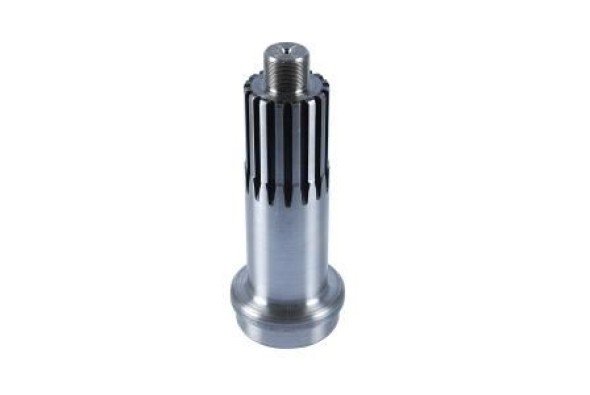

Description: MIDSHIP TUBE, THREAD 1"1/4X18 F.P.P 16 SPLINE (R)
Applications:
- Cardan
Material: Steel

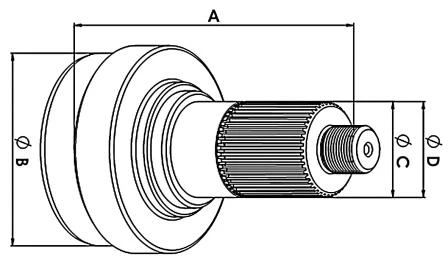

| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-118 | LINHA AMARELA | Cardan | 184,50 | 81,25 | 61,92 | 16-R | 1 1/4X18F.P.P | 51,00 | 59,63 |
