(S-117) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: S118

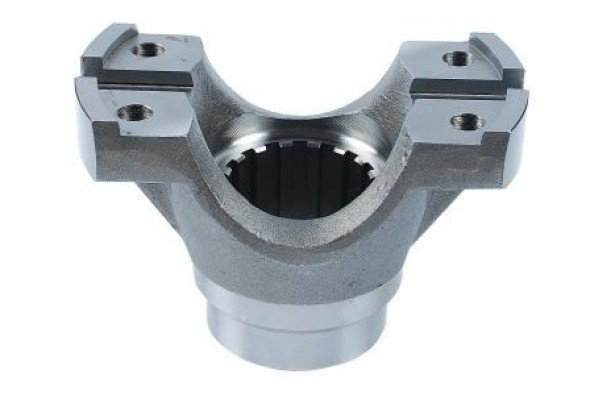

Description: END YOKE 16 SPLINE (R) THREAD 1/2"X20 P.P.P
Applications:
- Cardan
Material: Steel
Extra: SÉRIE 7C
Original code: 41543 | 11993929 | 04425

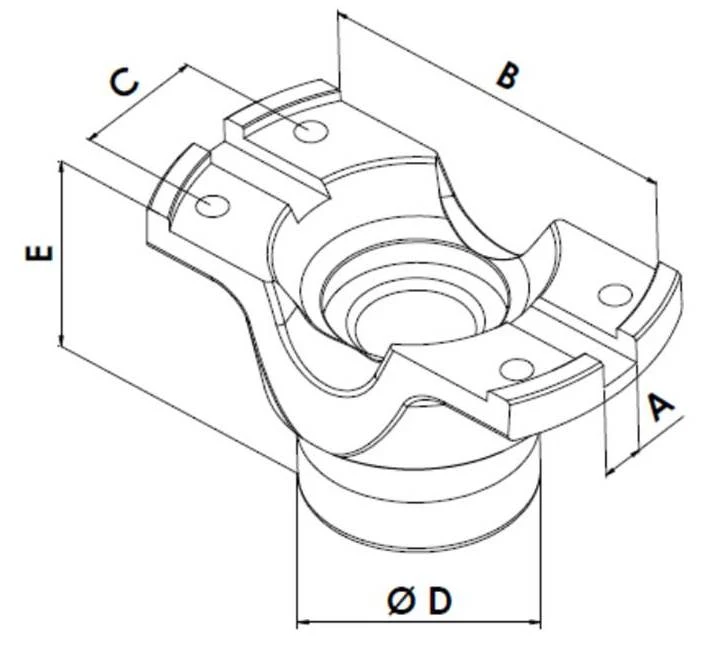

| Reference | Manufacturer(s) | Segment | A ( mm ) Rasgo da chaveta |
B ( mm ) Comprimento encosto cruzeta |
C ( mm ) Distancia menor entre furos |
D ( mm ) Ø Base retentor |
E ( mm ) Altura total |
Cruzeta |
Comprimento cruzeta sem travas Comprimento cruzeta sem travas |
Rosca |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-117 | LINHA AMARELA | Cardan | 15,87 | 148,40 | 49,20 | 71,60 | 110,50 | 5-7105X | 1/2X20FPP | 16-R | 54,25 | 59,65 |
