(S-116) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: S115 / SK020 / SK021

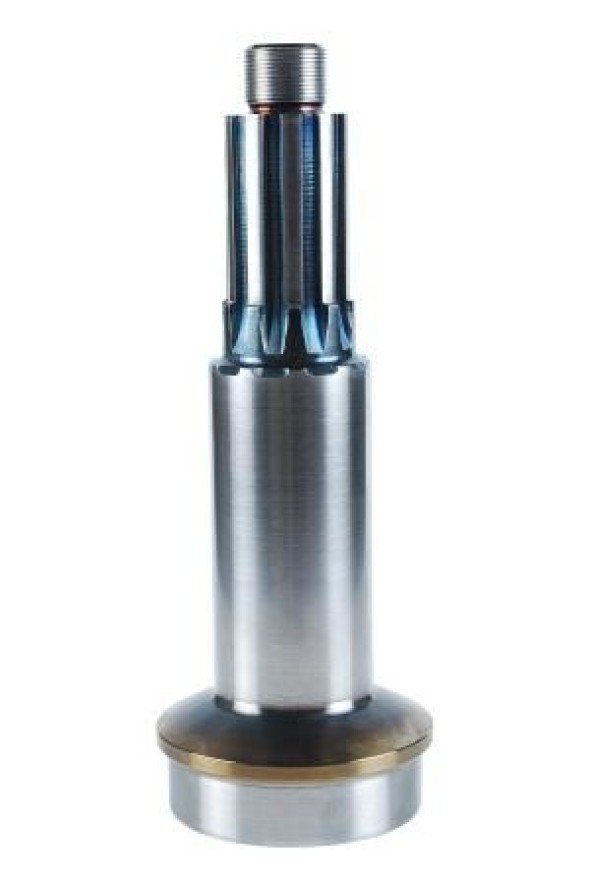

Description: MIDSHIP TUBE, THREAD 1"X20 F.P.P 10 SPLINE (R)
Applications:
- Cardan
Material: Steel
Original code: 501154 | 54477
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-116 | LINHA AMARELA | Cardan | 198,00 | 81,40 | 50,85 | 10-R | 1"X20F.P.P | 32,00 | 40,50 |
