(S-115) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: C029 / S116 / SK020 / SK021

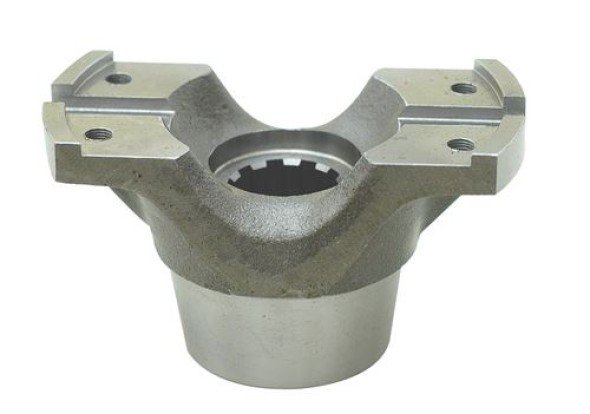

Description: END YOKE 10 SPLINE (R) THREAD 3/8"X24 F.P.P
Applications:
- Central
Material: Steel
Extra: SÉRIE 6C
Original code: 501156 | 3339207 | E61748 | 04363
| Reference | Manufacturer(s) | Segment | A ( mm ) Rasgo da chaveta |
B ( mm ) Comprimento encosto cruzeta |
C ( mm ) Distancia menor entre furos |
D ( mm ) Ø Base retentor |
E ( mm ) Altura total |
Cruzeta |
Comprimento cruzeta sem travas Comprimento cruzeta sem travas |
Rosca |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-115 | LINHA AMARELA | Central | 14,30 | 140,40 | 42,80 | 70,00 | 88,5 | 5-303X / 6C3X | 3/8X24FPP | 10-R | 34,90 | 38,10 |
