(S-110) compatible with vehicles from the following manufacturers: FORD e CHEVROLET GMC.
Assemble with: S109 / S119 / S129 / S141

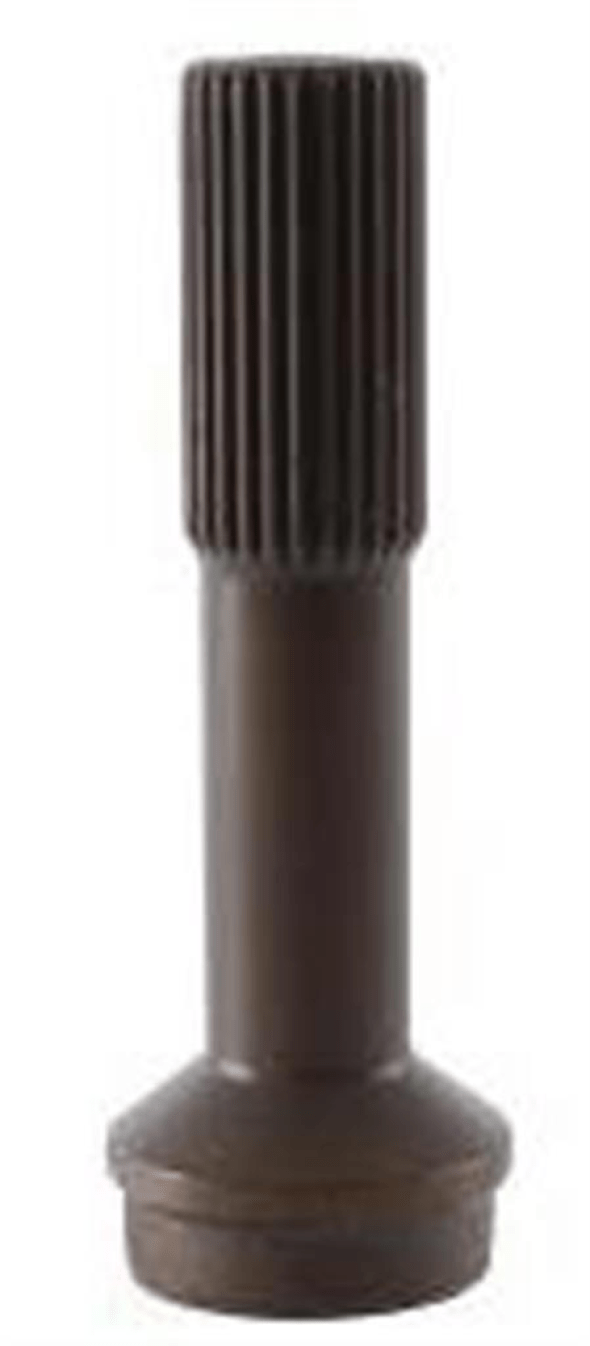

Description: TUBE SHAFT 27 SPLINE (E)
Applications:
- Cardan
Material: Steel
Original code: 301105 | 801623 | PT1231 | RPT628 | BC8A4851A | 2402271
Original code: 301105 | 801623 | PT1231 | RPT628 | BC8A4851A | 2402271

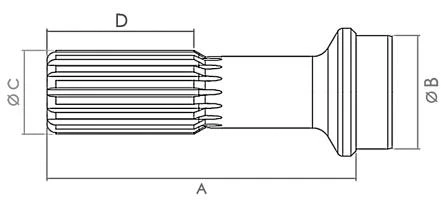

| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento da face ate encosto tubo |
B ( mm ) Ø Base da ponteira |
C ( mm ) Ø Estrias |
D ( mm ) Comprimento das estrias |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| S-110 | CHEVROLET GMC, FORD | Cardan | 134,50 | 46,20 | 29,85 | 56,00 | 27-E | 26,70 | 29,85 |
