(S-109) compatible with vehicles from the following manufacturers: FORD, CHEVROLET GMC e LINHA AMARELA.
Assemble with: C001 / S110 / S129 / S141

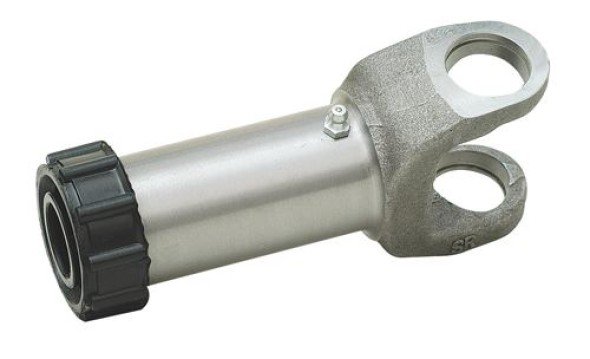

Description: SLIP YOKE 27 SPLINE (E)
Applications:
- Cardan
Material: Steel
Original code: 83PU4W040A | 52289713 | 239791KX |301101 | 801407 | LV1962 | RVL625 | SL36
Original code: 83PU4W040A | 52289713 | 239791KX |301101 | 801407 | LV1962 | RVL625 | SL36
Original code: 83PU4W040A | 52289713 | 239791KX |301101 | 801407 | LV1962 | RVL625 | SL36

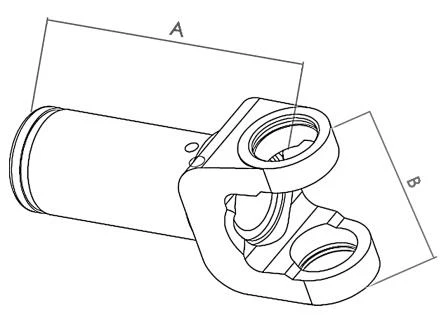

| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-109 | FORD, CHEVROLET GMC, LINHA AMARELA, LINHA AMARELA, LINHA AMARELA | Cardan | 132,00 | 61,90 | C-001 / 5-310X | 27,00 | 27-E | 27,80 | 30,30 |
