(S-1011) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S-771 / S-971

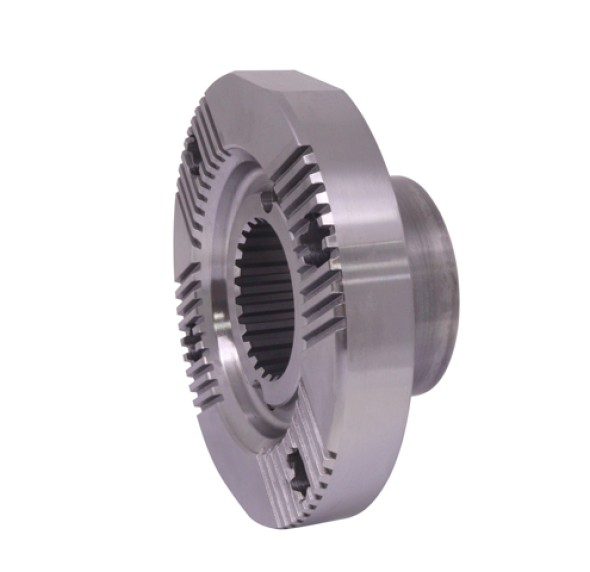

Description: ACOPLAMENTO RANHURADO 24 ESTRIAS (E)
Applications:
- Cardan Entre Diferenciais
Material: Steel
Original code: S-1011
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-1011 | SCANIA | Cardan Entre Diferenciais | 84,90 | 165,00 | 67,00 | 12,00 | 24-E | 55,75 | 59,70 |
