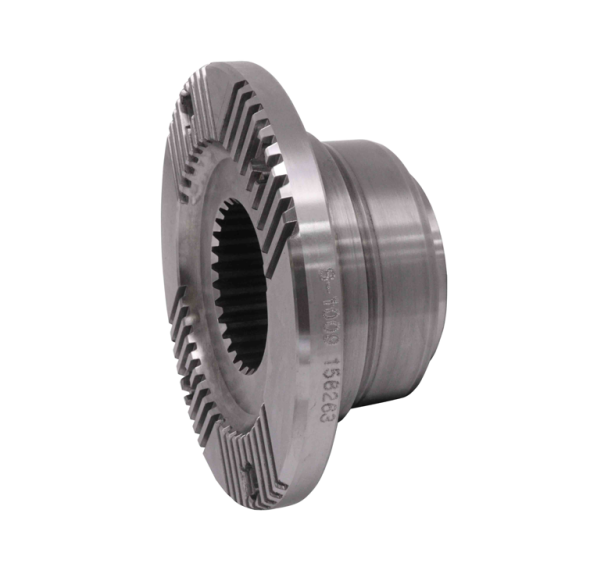

(S-1009) compatible with vehicles from the following manufacturers: MAN.
Description: ACOPLAMENTO RANHURADO 28 ESTRIAS (E)
Applications:
- Cardan Entre Diferenciais
Material: Steel
Extra: ENTRADA 2º DIFERENCIAL
Original code: S-1009
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-1009 | MAN | Cardan Entre Diferenciais | 94,90 | 150,00 | 67,50 | 13,00 | 28-E | 56,20 | 60,25 |
