(S-1003) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: S-1002

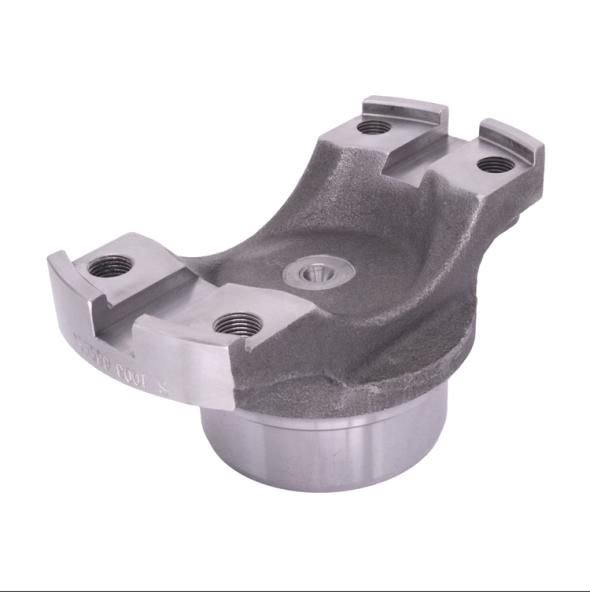

Description: GARFO DE SOLDA CHAVETADO SERIE 7C
Applications:
- Cardan
Material: Steel
Extra: SERIE 7C
Original code: S-1003
| Reference | Manufacturer(s) | Segment | A ( mm ) Rasgo da chaveta |
Ø B ( mm ) Comprimento encosto cruzeta |
C ( mm ) Distancia menor entre furos |
Ø D ( mm ) Ø Base solda |
E ( mm ) Altura total |
Rosca |
Cruzeta |
|---|---|---|---|---|---|---|---|---|---|
| S-1003 | LINHA AMARELA | Cardan | 15,87 | 148,40 | 49,20 | 80,5 | 80,00 | 1/2 | 5-7105X |
